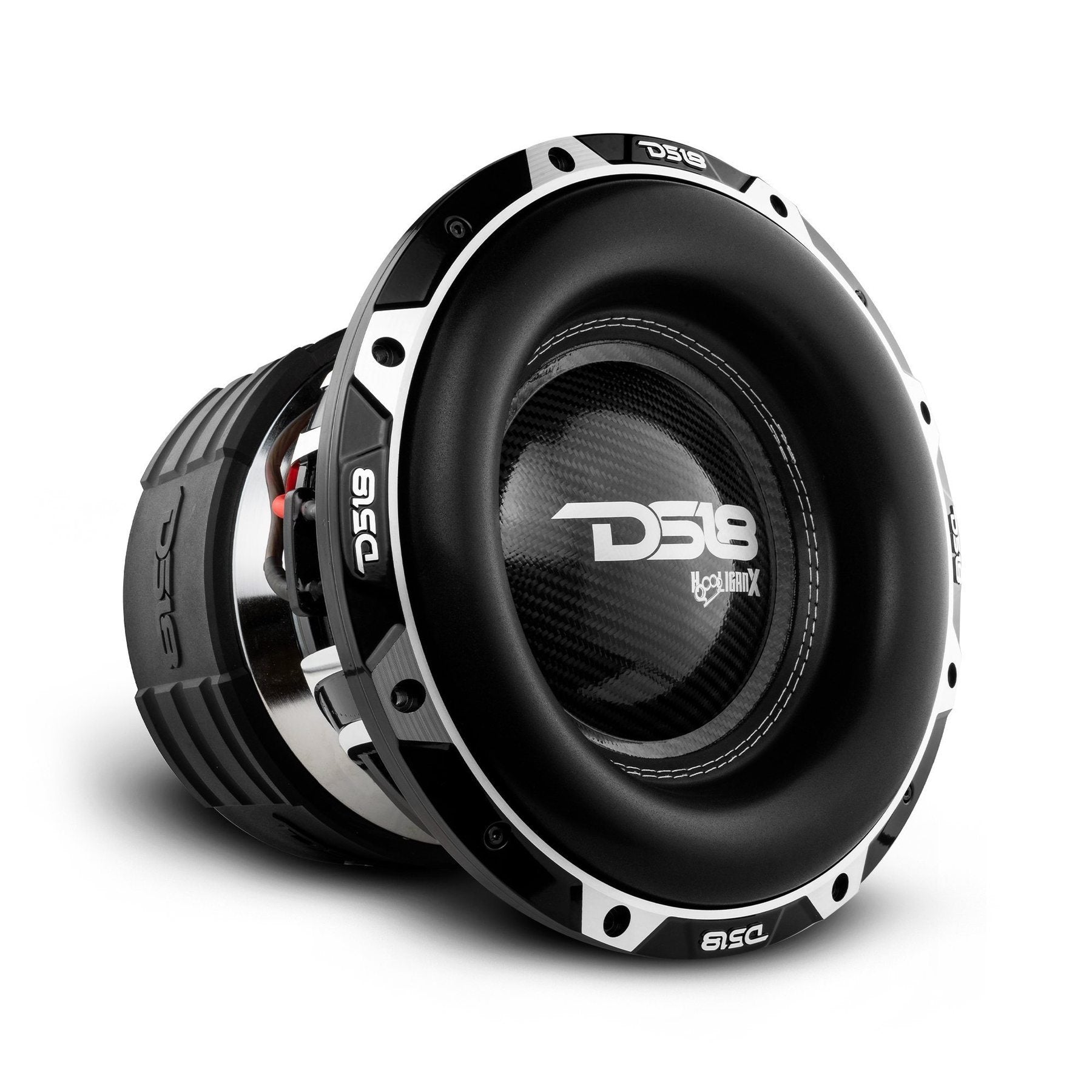

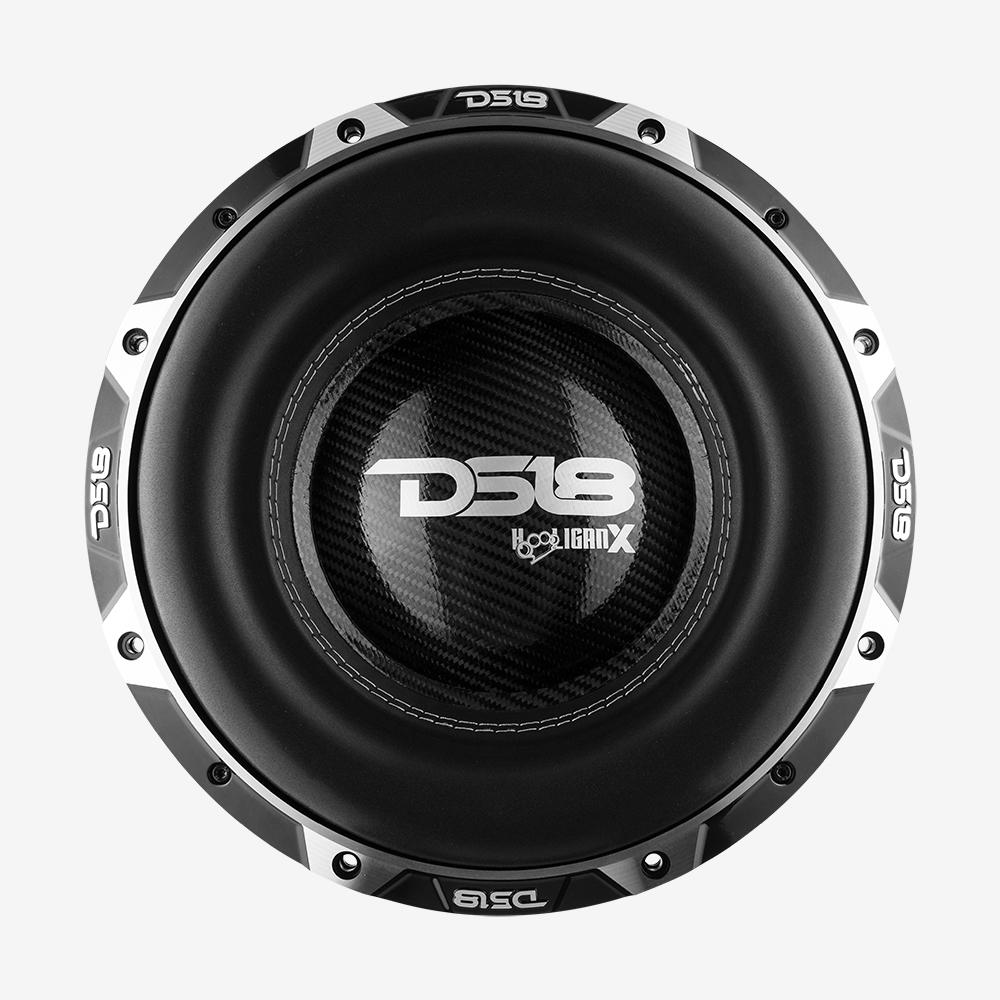

DS18 HOOLIGAN X Black Frame, High Excursion 12" Subwoofer 4000 Watts Rms 4" Dvc 4-Ohm

  • $999.95
    Unit price per
Snap Logo Lease for as low as $/week Get Approved

Shipping calculated at checkout.

Apply For Financing

DESCRIPTION

The DS18 Hooligan X12 has already been proven to provide top end performance and bass now for multiple years on the streets and in the lanes, hooligans have been a choice of music lovers and competitors alike.

We have taken the Traditional Hooligan and revamped it in our newest revision, the Hooligan X12 High Excursion subwoofer. This model features long throw pole, larger spider, and high excursion surround to lower the FS of the speaker making it louder at subsonic frequencies. This massive sub will be great for high powered music or SPL. A FS of 26 will ensure deep lows down to 20hz and great punchy bass up around 40hz depending on your box tuning. This subwoofer is rated at 4000w RMS and 6000w max so your vehicle will require electrical upgrades and large wire.

This sub will be friendly to 4th orders, 6th orders, ported boxes, and large sealed boxes and can be used in most applications that has room for the box. With a 59mm one way XMAX, this sub is sure to pump out extreme decibils with the proper power and box setup. We recommend a tuning of 25-35hz for ported boxes depending on your goals.

If you are looking for extreme bass and massive power look no further than the Hooligan High Excursion line! This Hooligan variant will be sure to start you on your way to high volume hairtricks and massive lows!

Highlights

  • High powered 4" Black Aluminum voice coil handling 4000w RMS and 6000w max power for heavy hitting competition bass.
  • We have added a large high excursion surround to help with the high pole to pole flex this subwoofer has giving it has a 59mm one way xmax!
  • We have also added a larger spider that helps lower the FS (Resonant Frequency) so this sub plays lower much louder than previous versions.
  • 4 inch black aluminum voice coil handling a massive 4000w RMS and 6000w peak will be sure to get this subwoofer moving with hurricane wind forces.
  • The DS18 Tooled Black basket is one of the slickest and best looking baskets on the market. Not only extremely strong but looks great so you can use plexiglass or mount inverted on your box to see the show quality frame and motor topped off by a carbon fiber dustcap.
  • Huge 500oz magnet will help the voice coil receive and handle the massive power this sub requires with high efficiency and durability.
  • Download HOOL-X12.1DHE Product Manual
    SPECIFICATIONS
    Nominal Diameter 12" / 304.8 mm
    Nominal Impedance 2+2 OHMS
    RMS Power Handling 4000 WATTS
    MAX Power Handling 6000 WATTS
    Sensitivity (1w/1m ) 87 dB
    Frequency Response 20Hz - 500Hz
    Recommended Lo Pass Crossover 80 Hz
    MOTOR
    Voice Coil Diameter 4” / 99.8 mm
    Voice Coil Former Material Black Aluminum
    Winding Material CCAW
    Cone Material Non Pressed Paper
    Dust Cap Material Carbon Fiber
    Surround Material Foam
    Basket Material Aluminum
    Basket Color | Finish Glossy Black with Machined Aluminum
    Magnet Material Ferrite
    Magnet Weight 500 Oz
    Displacement Volume 4.8L / 0.169ft3
    THIELE & SMALL PARAMETERS
    Equivalent Volume 23.22L / 0.82 ft3
    Excursion (one way) 50 mm
    Free Air Resonance 26 Hz
    Mechanical Factor 2.65
    Electrical Factor 0.476
    Total Factor 0.444
    Moving Mass 554.22 g
    Compliance 0.069 mm/N
    Bl Factor 24.65
    Voice Coil Inductance 43.12 mH
    Diaphragm Area 471.44 cm2
    DC Resistance 0.9+0.9 OHM
    Efficiency Bandwidth Product 54.6
    RECOMMENDED ENCLOSURES
    Sealed Internal Volume 17L / 0.6 ft3
    Sealed Box Output Response 41 Hz
    Ported Internal Volume 42.5L / 1.5 ft3
    Port Size *Square (WxHxL) 1.52" x 12.28" x 31.82"
    Port Tunning Frequency 30 Hz
    Ported Box Output Response 25 Hz
    MEASUREMENT
    Overall Diameter 12.64”
    Overall Depth 11.6”
    Front Mount Baffle Cutout 11.2”
    Mounting Depth 10”
    Motor Diameter 9.96"
