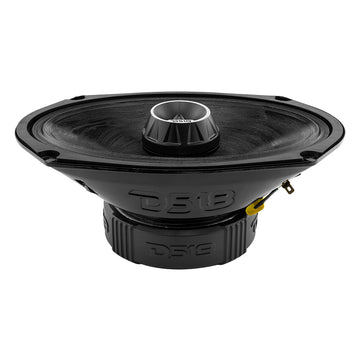

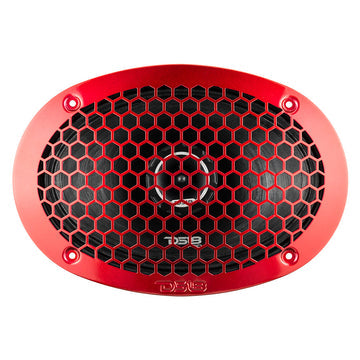

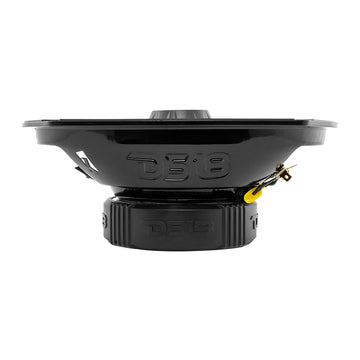

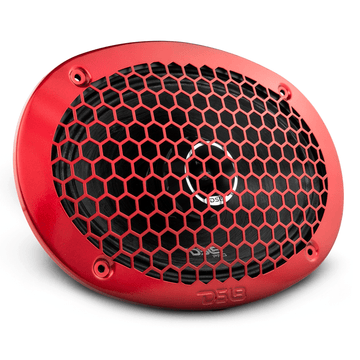

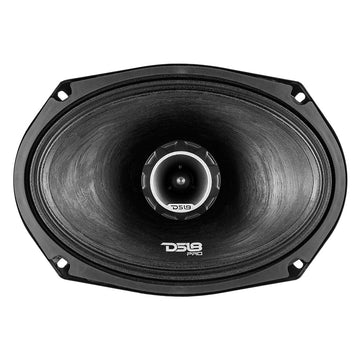

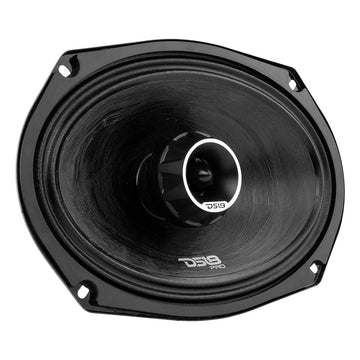

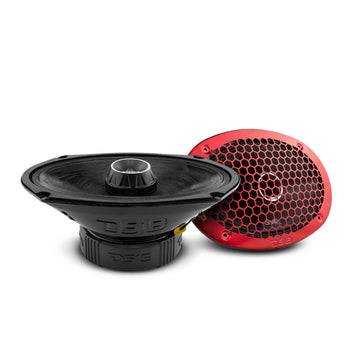

DS18 PRO-ZT 6x9 Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill 550 Watts 4-Ohm

Product type:

Vendor: DS18



Add to the wishlist

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.

Download Manual

Nominal Diameter: 6 x 9"
Nominal Impedance: 4 Ohms
RMS Power Handing: 275 Watts
MAX Power Handing: 550 Watts
Sensivity (1w/1m): 98dB
Frequency Response: 60Hz - 22KHz
Recommended Hi Pass Crossover: 80Hz
Voice Coil Diameter: 1.5" (38.1mm)
Voice Coil Former Material: Kapton
Winding Material:  CCAW
Basket Material: Steel
Magnet Weight: 27 oz
Voice Coil Diameter: 1"
Voice Coil Material:  Kapton
Winding Material:  CCAW
Diaphragm Material: Aluminum Alloy
Magnet Weight: 0.44 oz
Magnet Material: Neodymium
Thiele & Small Parameters
Equivalent Volume / Vas: 14.6927 LTR
Excursion / Xmax: 1.6mm
Free Air Resonance / Fs: 85Hz
Mechanical Factor / Qms: 3.906
Electrical Factor / Qes: 0.639
Total Factor / Qts: 0.602
DC Resistance / Re: 3.2 ohms
Overall Diameter: 260 x 180mm (10.24 x 7.09")
Front Mount Baffle Cutout: 219 x 150 (8.62 x 5.91")
Mounting Depth: 85 mm (3.35")
Overall Depth:  97 mm (3.81")
