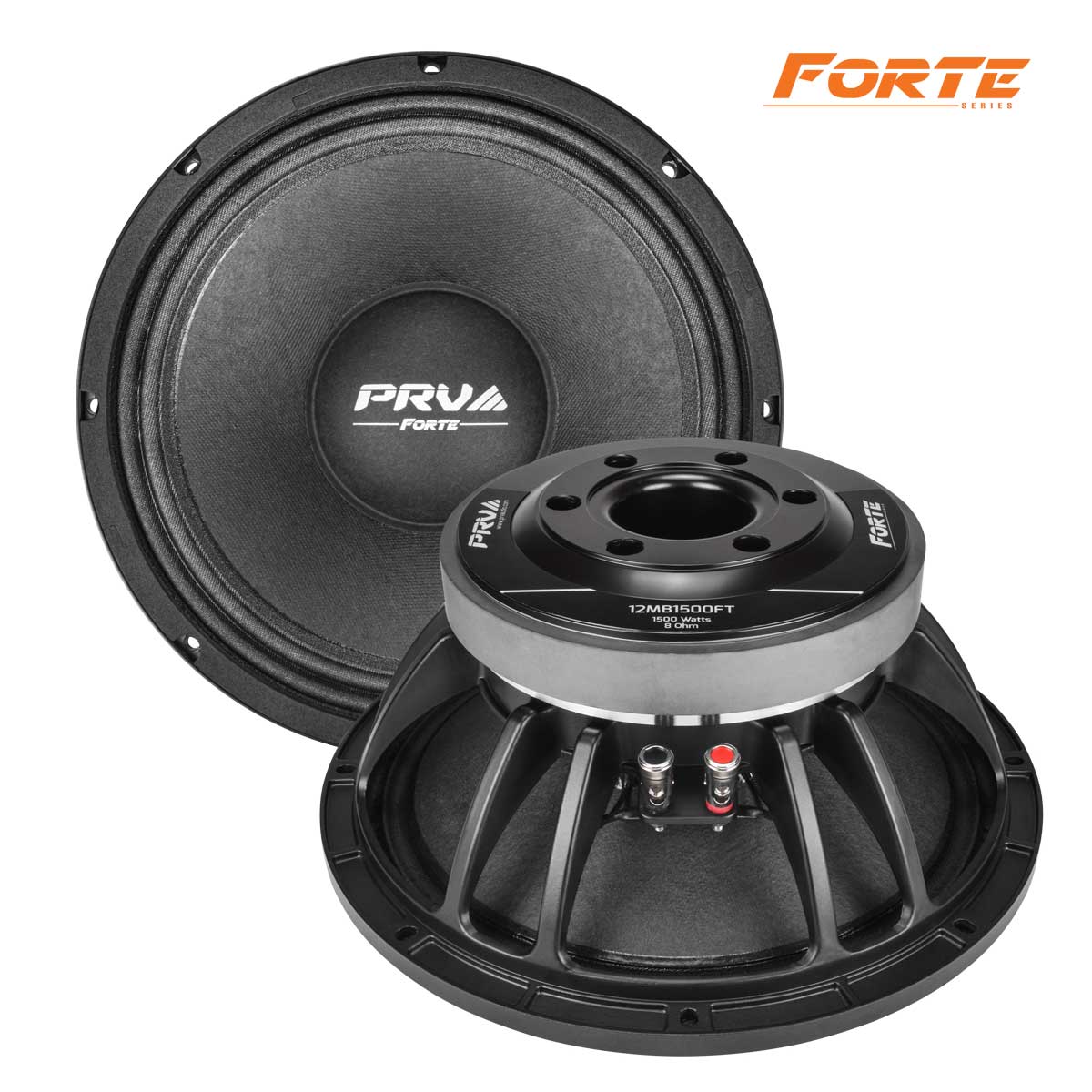

PRV Audio 12MB1500FT 12" MIDBASS LOUDSPEAKER
- Product Overview
The PRV 12MB1500FT has an excellent linear response, well controlled down to 75 Hz, which makes it a great option for 2-way cabinet systems that require strong BL magnet force and midbass punch. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.
- High BL factor and Xmax for outstanding Low output
- Rated at 1500 watts RMS Continuous Program Power
- 98.5 dB sensitivity, which makes it capable of generating a lot of output!
- 3.5″ Inside/Out CCAW voice coil wound on fiberglass former for hi-temp performance, 8 Ohm

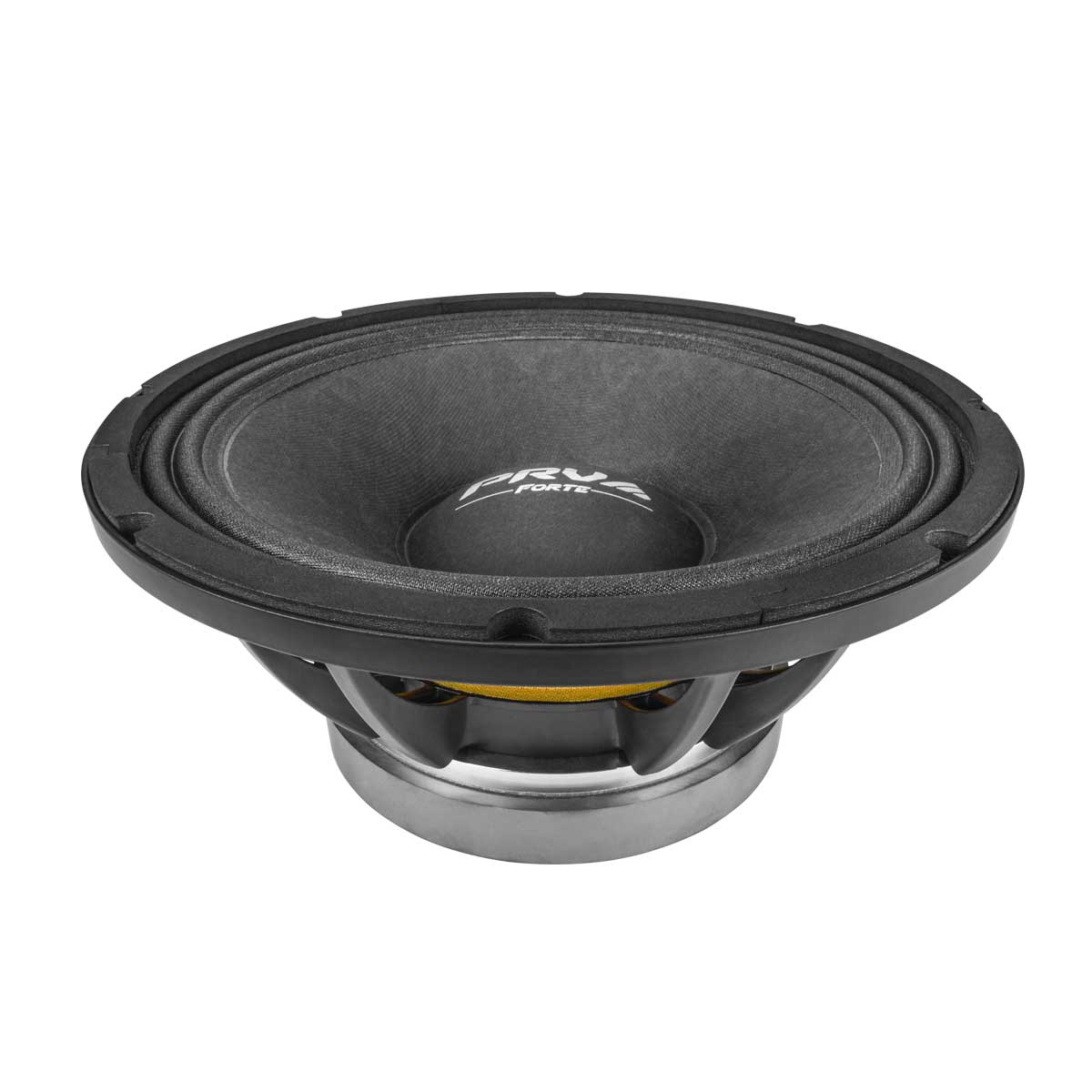

Supporting the cone is a heavy duty spider M roll treated cloth surround, designed for high excursion applications to handle short bursts of excessive power without damage. A double silicon spider system ensures excellent control during large excursions of 1.50″ peak-to-peak excursion before damage.
A very strong ferrite magnetic structure of 25 mm guarantees dynamism and precision and a unique 3,5” inside/outside voice coil design provides a very high-power handling of 1500 Watts RMS of musical power, thanks to its dual forced cooling system guarantees a very efficient voice coil ventilation for minimum power compression.
|Nominal Diameter||12″ (305 mm)|
|Nominal impedance||8 Ohms|
|Nominal Power Handling*||750 Watts|
|Continuous Program Power (RMS)**||1500 Watts|
|Max Peak Power***||3000 Watts|
|Sensitivity 2.83V at 1m||98.5 dB|
|Recommended Hi Pass Crossover
For Full Power Handling
12db Per Octave Crossover
|Frequency Response||75 – 5,000 Hz|
|Voice Coil Diameter||3.5″ (89 mm)|
|Voice Coil Wire||CCAW|
|Voice Coil Winding Depth||17.0 mm|
|Former Material||Glass Fiber|
|Magnetic Gap Depth||10.0 mm|
|Frame Material||Die Cast Aluminum|
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
|Equivalent Volume||Vas||62.37 l|
|Excursion (mathematical)***||Xmax||6.00 mm|
|Free Air Resonance||Fs||57.2 Hz|
|Cone Area||Sd||585 cm²|
|Mechanical Mass||Mms||59.32 g|
|Bl Factor||Bl||17.27 Tm|
|Dc Resistance||Re||5.2 Ohms|
|Inductance||Le||0.963 mH at 1 kHz|
|Mechanical Mass Without Air||Mmd||51.31 g|
|Mechanical Compliance||Cms||0.130 mm/N|
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4

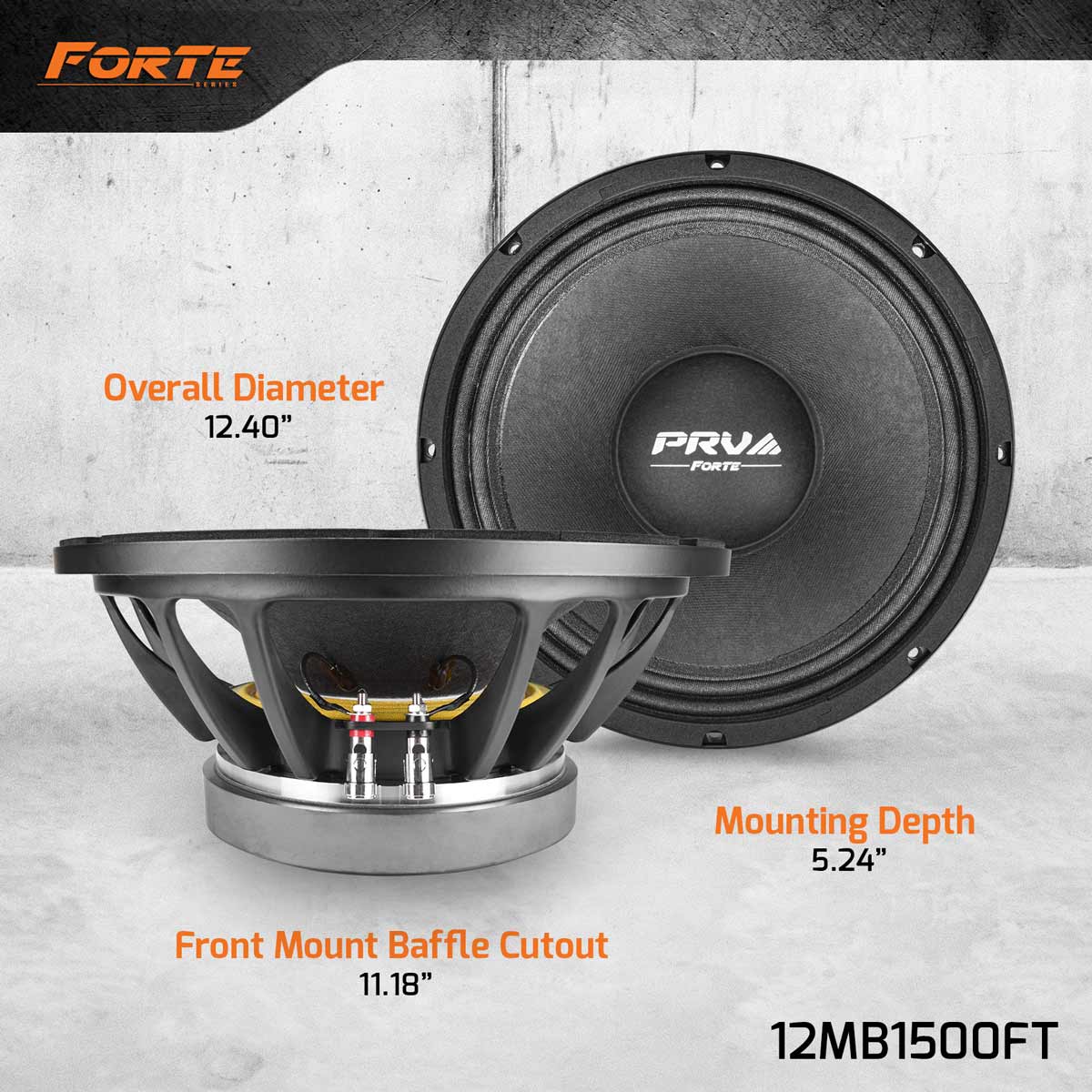

|Overall Diameter||12.40” (315 mm)|
|Front Mount Baffle Cutout||11.18” (284 mm)|
|Mounting Depth||5.24”(133 mm)|
|Overall Depth||5.87”(149 mm)|
|Net Weight||16.32 Lbs (7.4 kg)|
|Shipping Weight||18.08 Lbs (8.2 kg)|
|Carton Dimensions W x L x H||13.19”x 13.19” x 6.90”
(335 x 335 x 170mm)
