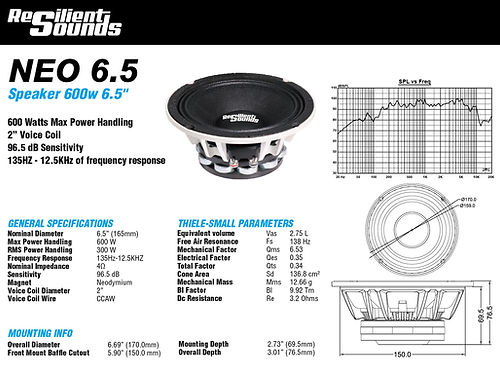

Neo 6.5
600 Watts Max Power Handling
2" Voice Coil
96.5 dB Sensitivity
135HZ-12.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 6.5” (165mm)
Max Power Handling 600 w
RMS Power Handling 300 w
Frequency Response 135Hz-12.5KHZ
Nominal Impedance 4ohm
Sensitivity 96.5dB
Magnet Neodymium
Voice Coil Diameter 2"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 2.75 L
Free Air Resonance Fs 138 Hz
Mechanical Factor Qms 6.53
Electrical Factor Qes 0.35
Total Factor Qts 0.34
Cone Area Sd 136.8cm²
Mechanical Mass Mms 12.66 g
BI Factor BI 9.92 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 6.69”(210mm)
Front Mount Baffle Cutout 5.90"(186mm)
Mounting Depth 2.73"(79mm)
Overall Depth 3.01"(89.3mm)
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
Description
Neo 6.5
600 Watts Max Power Handling
2" Voice Coil
96.5 dB Sensitivity
135HZ-12.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 6.5” (165mm)
Max Power Handling 600 w
RMS Power Handling 300 w
Frequency Response 135Hz-12.5KHZ
Nominal Impedance 4ohm
Sensitivity 96.5dB
Magnet Neodymium
Voice Coil Diameter 2"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 2.75 L
Free Air Resonance Fs 138 Hz
Mechanical Factor Qms 6.53
Electrical Factor Qes 0.35
Total Factor Qts 0.34
Cone Area Sd 136.8cm²
Mechanical Mass Mms 12.66 g
BI Factor BI 9.92 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 6.69”(210mm)
Front Mount Baffle Cutout 5.90"(186mm)
Mounting Depth 2.73"(79mm)
Overall Depth 3.01"(89.3mm)
