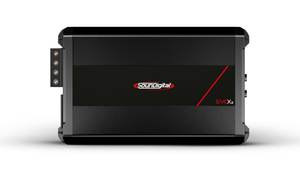

SounDigital 2400.4 EVOX2 4 ohm 4 Channel

  • $999.99
    Unit price per
  • Save $500

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION

DESCRIPTION



TECHNICAL SPECIFICATIONS

2400.4 EVOX2 – 2Ω
Power @ 12.6V @ 4Ω: 4 X 261 WRMS
Power @ 12.6V @ 2Ω: 4 X 396 WRMS
Power @ 12.6V @ 1Ω: 4 X 600 WRMS
Bridge Power @ 12.6V @ 4Ω: 2 X 792 WRMS
Bridge Power @ 12.6V @ 2Ω: 2 X 1200 WRMS
Power @ 14.4V @ 4Ω: 4 X 291 WRMS
Power @ 14.4V @ 2Ω: 4 X 441 WRMS
Power @ 14.4V @ 1Ω: 4 X 669 WRMS
Bridge Power @ 14.4V @ 4Ω: 2 X 883 WRMS
Bridge Power @ 14.4V @ 2Ω: 2 X 1338 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 121 A
Current Draw (Max): 241 A
Recommended Fuse (Music): 140 A
Total Efficiency: 79%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 8.9 x 5.4 x 2.2 in

2400.4 EVOX2 – 4Ω
Power @ 12.6V @ 4Ω: 4 X 396 WRMS
Power @ 12.6V @ 2Ω: 4 X 600 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: 2 X 1200 WRMS
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 4 X 441 WRMS
Power @ 14.4V @ 2Ω: 4 X 669 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: 2 X 1338 WRMS
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 121 A
Current Draw (Max): 241 A
Recommended Fuse (Music): 140 A
Total Efficiency: 79%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 90dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 8.9 x 5.4 x 2.2 in
