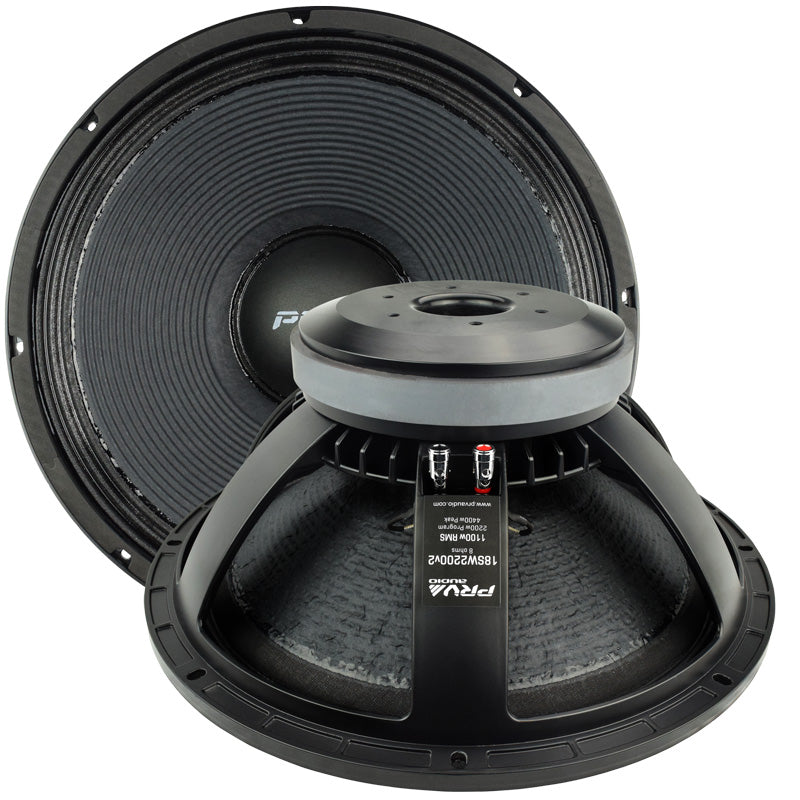

PRV Audio 18SW2200 v2 18" SUBWOOFER LOUDSPEAKER

  • $249.91
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

Features



The 18SW2200 v2 is the upgraded version of the popular 18SW2200 pro audio loudspeaker in the PRV subwoofer series. This newest version features more durable moving parts increasing longevity and extreme linearity during intense use.
The advanced 4” inside out voice coil and cone material along with its ability to reproduce extremely low frequencies will forever make this your woofer of choice to replace your existing drivers.

The 18SW2200-v2 response and accuracy to low notes will surprise any listener and is great for either bandpass or bass reflex systems and has a specially designed Forced Air Cooling System to ensure proper cooling for long hard play in your pro audio environment.
A reinforced cast aluminum frame increases rigidity and resists frame flex. Spring-loaded speaker terminals allow for easy speaker wire connection and the use of a dual spider suspension, mated to a cotton M-Roll surround and ribbed cone (all attached with a special resin) offer precise movement along its impressive 9mm Xmax.


Highlights

  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 1100 Watts
  • Program Power: 2200 Watts
  • Sensitivity (1W/1m): 97 dB
  • Voice Coil Diameter: 4″


Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter 18″ (457 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 1100 Watts
Program Power 2200 Watts
Sensitivity 2.83V at 1m 97 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
50 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 45 – 2,500 Hz
Voice Coil Diameter 4″ (100 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 25.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 11.0 mm
Frame Material Die Cast Aluminum




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 157.1 l
Excursion (mathematical)*** Xmax 9.75 mm
Free Air Resonance Fs 42.7 Hz
Mechanical Factor Qms 10.95
Electrical Factor Qes 0.45
Total Factor Qts 0.44
Cone Area Sd 1288 cm²
Mechanical Mass Mms 204.3 g
Bl Factor Bl 24.7 Tm
Dc Resistance Re 5.1 Ohms
Inductance Le 1.92 mH at 1 kHz
Mechanical Mass Without Air Mmd 178.16 g
Mechanical Compliance Cms 0.067 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 18.11” (460 mm)
Front Mount Baffle Cutout 16.65” (423 mm)
Mounting Depth 7.48” (190 mm)
Overall Depth 8.07” (205 mm)
Net Weight 32.8 Lbs (14.9 kg)
Shipping Weight 39.3 Lbs (13.3 kg)
Carton Dimensions W x L x H 20.27” x 19.68” x 10.23”
(515 x 500 x 260 mm)
